What are the relationships between scholastic achievement and acoustics in learning spaces? Answers to this difficult question are needed to support setting objective limits for noise and reverberation. Good acoustics is necessary in classrooms and learning spaces whenever speech communication is important to the learning process. It is clear that excessive noise and reverberation interfere with speech communication and thus present acoustical barriers to learning. Acoustical allowances are needed to accommodate differences in student abilities, health, and scholastic preparation. This paper reviews speech communication criteria and studies that have linked scholastic performance with acoustical noise or reverberation. Some studies link aircraft noise with delayed language acquisition, reading deficiencies, reduced motivation, and long-term recall of learned material. Others link ground transportation noise with reduced academic achievement. Aside from reduced speech intelligibility, little data were found to gauge the impact on learning achievement from heating, ventilating, and air conditioning noise; from the noises of students interacting in cooperative learning environments; or from reverberation. Despite their incomplete nature, some useful inferences can be drawn from these studies. For example, evidence for cumulative impact of poor acoustics on scholastic achievement suggests that good acoustics be made a high priority for children in lower grades.

The ability to understand isolated speech material consisting of single words or sentences in an acoustic environment with varying amounts of background noise and reverberation has been well studied in laboratory settings and documented in the literature for persons with normal hearing^1-3, persons with impaired hearing^{4, 5} and students for whom English is a second language ⁶ All of these auditory challenges exist in the school classroom with an environment for which the most significant speech communication can be connected discourse or, for the youngest learners, new words or phrases containing unfamiliar sounds or phonemes. Criteria for speech intelligibility as measured under laboratory conditions are clearly related to speech reception in this classroom acoustic environment but direct correlation between laboratory testing of speech intelligibility and student achievement in school environments is more tenuous. For example, Evans ¹² has shown evidence for adverse effects on children's health and learning due to chronic noise exposure. Development of the link between acoustics and learning is vital to support improvements in classroom acoustics. The classroom serves as a communication channel for learning essential academic, social, and cultural skills for all students. All knowledge-based societies should do what is necessary to eliminate acoustical barriers to learning.

Noise level and teacher vocal strain

Excessive noise can only be partially ameliorated by a teacher raising his or her voice level and then only at the potential cost of voice fatigue. From a study by Pearson, et al⁷, the average A-weighted sound level, LA at 1 meter from male and female teachers was found to increase from a level of 60 dB in quiet (average for normal and raised voice effort) to a level of about 62 dB in an A-weighted background noise level of 35 dB to 67 dB in a background of 45 dB and then increasing approximately dB for dB as the background noise level increased above 45 dB. Thus, while the teacher attempts to maintain approximately the same signal to noise ratio in a noisy room, the strain on the teacher's voice increases causing voice fatigue and results in teacher absenteeism. ⁸. In addition; there is evidence of a reduced number of verbal interactions between teachers and students in noisy classrooms, although its impact on student achievement is not known.

From measurements of background noise in 56 classrooms in 5 different studies in the U.S., the average A-weighted background noise level was roughly normally distributed with a mean of 45 dB and a standard deviation of 8 dB. Thus, statistically, these very limited data suggest that 28% of the nations' schools may have background noise levels in excess of 50 dB. This 28 % figure is cited as a crude basis for comparison with results from a US Government Accounting Office survey ⁹ which found that 28% of the nation's schools reported "acoustics for noise control" as their top environmental problem. This suggests that the 28% figure from this survey may be a substantial understatement of the problem of acoustic barriers in schools since a background noise level of 50 db is 15 dB above the recommended limit included in a US standard for classroom acoustics now approaching a final draft. ¹⁰ It also suggests that the average voice level for a teacher in many classrooms could be 10 dB or more above their average (normal and raised) level in quiet - further validation of the prevalence of voice fatigue for teachers.

A teacher cannot effectively compensate for the acoustical barrier of excessive reverberation in a classroom. Raising the voice level provides little compensation. What, now is the link between the classroom acoustic environment and the scholastic achievement of students - i.e., what is the effect of the acoustic barriers?

Educational research studies¹¹ show that learning is dependent on the ability to communicate with spoken language and that perception of spoken language is the foundation for the ability to read and write.12 As much as 60% of classroom learning activities typically involve listening to, and participating in, spoken communications with the teacher and other students. It would be fully expected, therefore, for disruption of this communication to affect students' scholastic achievement.

For this paper, we mention, but make no attempt to document, the added acoustical barriers in the classroom for students with hearing impairments, learning disabilities or for those who are not learning in their native language. These added burdens simply compound the negative effects of these barriers to scholastic achievement. This omission is not meant to minimize their importance. Concern for the hearing handicapped, was an important motivating force that inspired much of the current effort to improve classroom acoustics. ¹⁰

In one pioneering study of noise and reading in a home setting, Cohen, et al¹³ measured reading and auditory processing among children living on different floors of an apartment building located over a busy highway in New York City. They found that for socio-economically-equivalent children, the higher the floor of residence, the lower the background noise level and the higher the reading scores.

In a series of three studies carried out on a school located within 67 m (220 ft.) of an elevated urban train track, Bronzaft and McCarthy¹⁴ and Bronzaft ¹⁵ studied the reading scores of 2nd to 6th grade children in classrooms facing the tracks and in classrooms on the other side of the building facing away from the tracks. In the first study¹⁴ (1975), it was found that children in the lower grades exposed to the noisy side were three or four months behind in reading scores relative to the children on the quieter side and as much as 11 months behind for the higher grades.

FIGURE 1. A study by Bronzaft and her colleagues showed that children exposed to the noisy side of a school building achieved lower reading scores than students on the quiet side.

After a subsequent effort succeeded in reducing the track noise by 3 to 8 dB on both sides of the school, further tests were conducted to determine if the achievement differences diminished.. ¹⁵ As shown in Fig, 1, a substantial difference remained in the reading scores between "noisy" and "quiet" classrooms. The students in each classroom were comparable in all respects and were receiving the same type of instruction. The data in Fig. 1 indicate that the reading scores for the children in "noisy" classrooms are approximately one year behind those in the "quiet" rooms - the rooms away from the rail track. There is some indication in the data that this time lag in reading scores may be slightly less for the lower grades, which is consistent with the 1975 study. There may be two plausible explanations of this effect: 1) it was observed that the teacher spent more one-on-one time with the students in the lower grades thus tending to minimize the detrimental effects of noise on their speech communication - a trend just the opposite of what might be expected for background noise effects on learning for younger vs. older children or 2) a hypothesized compounded effect of reduced learning for children in noisy classrooms as they progress through their grades. There are no known data to validate either possibility.

Another classic study on noise effects on scholastic achievement was carried out by Lukas, et al¹⁶ in 14 schools in Los Angeles, California, located at different distances from freeways. The differences in distance from the freeway caused the background noise in the classrooms to differ by up to 19 dB between the noisiest and quietest classrooms. Reading and math grade-equivalent scores and general classroom behavior patterns were evaluated in 74 classrooms, approximately 19 in each of the "noisy" and "quiet" schools in third and sixth grade classes. The results of this study for reading scores are shown in Fig. 2 in terms of the grade equivalent reading scores as a function of the C-weighted background noise level in the classroom.

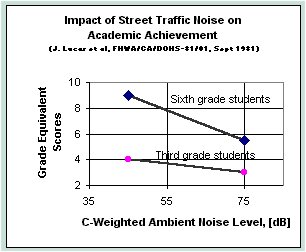

FIGURE 2. A study by Lucas et al showed that academic achievement was higher for students exposed to lower levels of noise from freeways.

Lukas, et al, used the C-weighted level because it provided the best correlation with the reading scores. However, the average difference between the C- and A-weighted noise levels was approximately the same, (14 to 15 dB) for the "noisy" and "quiet" locations. The data in Fig. 2 show, in this case, a much greater decrease in reading scores for the 6th grade classes than for the 3rd-grade classes. This is a more prominent effect of grade differences in scholastic effects of noise than was shown by the Bronzaft data. ^{14, 15} The explanation for this pattern is still uncertain - either differences in teaching style between grades or cumulative compounded effects of poor acoustics on learning still seem to offer plausible explanations. If it were the latter, however, the loss to the learning process would be more critical. Carefully executed prospective educational research studies may be needed to resolve this enigma. It is not just an academic question to be resolved since it has significant implications for placing priorities on improving classroom acoustics at various grade levels.

Not addressed in this paper is the more insidious effect on scholastic achievement that has been attributed to poor classroom acoustics - the tendency for students who can't hear a teacher's instructions to withdraw from active participation in class activity and potentially develop a decreased sense of self-worth. ¹²

Other research, including unpublished anecdotal studies, have linked aircraft noise with delayed language acquisition, reading deficiencies, reduced motivation, and long-term recall of learned material. Aside from reduced speech intelligibility, little data were found to gauge the impact on learning achievement from heating, ventilating, and air conditioning noise or from the noise of students interacting in cooperative learning. This seems to be another fruitful area for study.

One other study on classroom acoustics worthy of note for this paper is the recent work carried at Heriot-Watt University in Scotland. ¹⁷ Sixty teaching spaces in 13 schools at various locations around the United Kingdom were evaluated for their acoustic environment and corresponding speech communication conditions and teacher satisfaction. The average A-weighted background noise level in the unoccupied classrooms, before any acoustic treatment was applied was 45 dB, identical to the average cited earlier for the sample of US schools. After acoustic treatment, consisting of the application of acoustic absorption materials on the ceiling, the unoccupied background noise levels dropped to 40 dB, presumably reflecting the decrease in the reverberant level with added acoustic absorption. The average reverberation in the unoccupied room dropped, after treatment, from 0.7 seconds to 0.4. While no testing of student achievement was carried out, predictions of improved speech intelligibility demonstrated the effectiveness of the acoustic treatment. As stated by the researchers: "subjectively, classrooms with acoustic treatment were favored by the teachers and pupils, who reported a greater ease of communication and increased performance."¹⁷

Limited data strongly indicate that poor classroom acoustics in the form of excessive background noise are indeed barriers to learning, as demonstrated by reduced scholastic achievement. The vital necessity of maintaining a proper acoustic environment while students are acquiring language skills seems especially significant and self-evident.

Further research is called for to more accurately define the magnitude of this degradation in learning and to more clearly define the various confounding factors, especially the potential significance of cumulative loses in learning over time as a child progresses through a school with less than an optimum acoustic environment. Having said that, the existing evidence for adverse effects on learning of poor classroom acoustics provides ample motivation to press on as rapidly as possible to improve the acoustic environment in classrooms and eliminate the acoustic barriers to learning.

1.

1. French, N.R., and Steinberg, J.C. (1947), "Factors governing the intelligibility of speech," J. Acoust. Soc. Am. 19, 90- 119 2.
2. Plomp, R. and Mimpen, A.M. (1979), "Speech-reception threshold for sentences as a function of age and noise level," J. Acoust. Soc. Am., 66, 1333-1342. 3.
3. Pavlovic, C.V. (1987), "Derivation of primary parameters and procedures for use in speech intelligibility predictions," J. Acoust. Soc. Am. 82, 413-422. 4.
4. Plomp, R. (1986), "A signal-to-noise ratio model for the speech-reception threshold of the hearing impaired," J. Speech and Hearing Research 29, 146-154. 5.
5. Finitzo-Hieber, T., and Tillman, T. (1978), "Room acoustical effects on monosyllabic word discrimination ability for normal and hearing impaired children," J. Speech and Hearing Research 21, 440-448. 6.
6. Crandell, C.C., and Smaldino, J.J. (1996), "Speech perception in noise by children for whom English is a second language," American Journal of Audiology 5, 47-51. 7.
7. Pearsons, K., Bennett, R.S., and Fidell, S. (1976), "Speech levels in various noise environments," Prepared for Office of Resources and Development, Environmental Protection Agency. Bolt Beranek and Newman Inc. Report No. 328. 8.
8. Education Research Service, Inc. 9.
9. U.S. General Accounting Office, "Report on condition of America's schools" GAO/HEHS-95-61, Feb. 1, 1995. 10.
10. Schmid, C. and Thibault, L.E. L. "Classroom acoustics- Success through partnering between a scientific society and the U.S. Government", Proceedings, ICA, Rome, Italy, Aug 2001. 11.
11. Flavell, J.H. (1977), Cognitive Development. Englewood Cliffs, NJ: Prentice-Hall. 12.
12. Evans, G.W., and Maxwell, L (1997), "Chronic noise exposure and reading deficits: The mediating effects of language acquisition," Environment and Behavior 29(5), 638-656. 13.
13. Cohen, S., Glass, D. C., & Singer, J. E. (1972). Urban Stress. Academic Press New York: 14.
14. Bronzaft, A.I. and McCarthy, D.P. (1975), "The effect of elevated train noise on reading ability," Environmental Behavior, 7, 517-528. 15.
15. Bronzaft, A.L. (1982) "The effect of a noise abatement program on reading ability", J. Environmental Psychology, 1, 215-222 16.
16. Lukas, J.S., DuPree, R.B and Swing, J.W, (1981) "Effects of noise on academic achievement and classroom behavior", Office of Noise Control, Cal. Dept. of Health Services, FHWA/CA/DOHS-81/01, Sept 1981. 17.
17. MacKenzie, D.J and Airey, S. (1999), "Classroom Acoustics, a research project", Heroit-Watt Univ., Edinburgh.
